In the field of mechanical seal flushing technology, PLAN 11 is the most widely adopted and fundamental self-flushing arrangement. Featuring a compact structure, low cost and convenient maintenance, it has become the standard configuration for single mechanical seals under general operating conditions. This paper comprehensively analyzes the PLAN 11 flushing scheme from four aspects: core principle, application scope, advantages and limitations, as well as maintenance guidelines.

Ⅰ. Core Principle: Simple Circulation for Reliable Seal Operation

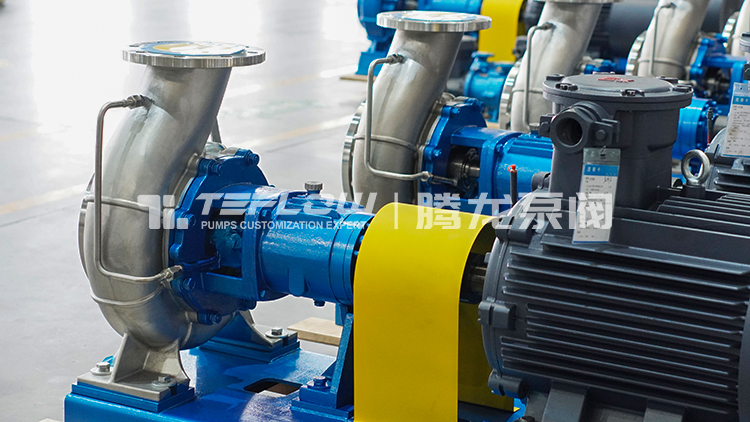

PLAN 11 operates on internal self-circulation flushing. It requires no external media, and uses the process fluid of the equipment itself to complete cooling, lubrication and cleaning of the mechanical seal. Its working process forms a closed loop of extraction → flushing → reflux:

1.Media extraction: Part of the process fluid is drawn from the high-pressure discharge side of the pump and serves as flushing fluid. Natural flow is driven by the pressure differential between the pump discharge and seal chamber.

2.Seal flushing: After flow regulation via an orifice plate (minimum bore diameter ≥ 3 mm per API standard), the flushing fluid is injected into the seal chamber to dissipate frictional heat, flush away impurities and dilute corrosive media.

3.Media reflux: Post-flushing fluid flows back into the pump casing through the throat bushing, forming an internal circulation with no extra discharge required.

The entire circulation is powered solely by the inherent pressure difference between pump inlet and outlet, with no additional power unit. The orifice plate stabilizes flushing flow, prevents excessive flow velocity or abnormal pressure, maintains stable seal chamber pressure and sufficient margin against medium vaporization. Thus, it fundamentally fulfills three essential functions of the seal: cooling, lubrication and venting.

Ⅱ. Application Scope: Ideal for General Conditions and Basic Operation Requirements

PLAN 11 is highly compatible with mild operating conditions and favorable medium properties, mainly applicable to conventional working environments with stable parameters.

1.Medium properties: Suitable for clean, particle-free, non-polymerizing, non-crystallizing and low-viscosity fluids with extremely low solid content, free of coking and depositing impurities. Typical media include clean water, circulating water, lubricating oil, light hydrocarbons and room-temperature clean chemical fluids.

2.Temperature and pressure: Applicable when medium temperature ≤ 150 ℃, with stable operating pressure and no drastic temperature fluctuation or pressure surge.

3.Seal type: Single mechanical seal.

It is extensively used in petroleum and natural gas, petrochemical, power generation, water treatment and other industries, supporting conventional equipment such as clean water pumps, lube oil pumps and light hydrocarbon transfer pumps.

Ⅲ. Advantages and Limitations: Rational Understanding for Proper Adaptation

PLAN 11 has become the standard for general conditions owing to its outstanding merits. Nevertheless, constrained by its inherent working principle, improper application must be avoided through objective analysis.

(1) Core Advantages

1.Ultra-simple structure: Only pipeline connections and an orifice plate are required. No coolers, external storage tanks or external fluid supply systems are needed, resulting in simple piping layout and rapid on-site installation.

2.Extremely low operating cost: The system directly reuses on-site process fluid as flushing medium, consuming no external water or chemicals with zero extra material loss. Both initial investment and long-term maintenance costs are minimized.

3.Easy maintenance: With few components and potential failure points, daily inspection only covers pipeline patency and orifice condition. Disassembly and overhaul are convenient, imposing low technical requirements on field maintenance personnel.

4.Stable and reliable operation: Pressure-differential-driven circulation is naturally steady and continuous, providing consistent lubrication and heat dissipation for seal faces to adapt to uninterrupted stable operation.

(2) Major Limitations

1.Narrow operating boundary: Inapplicable to high-temperature, high-solid-content, highly corrosive, easily polymerized/crystallized or easily vaporized media. Exceeding the allowable parameters will lead to rapid wear and failure of the seal.

2.No independent cooling capacity: Heat dissipation relies entirely on the medium itself. When medium temperature is excessively high, the seal chamber cannot be actively cooled, easily causing overheating of seal faces and flash vaporization of fluid.

3.No impurity isolation function: Even trace solid particles in process fluid directly impact the seal faces, accelerating component wear and shortening service life.

4.No standby flushing source: The system fully depends on pump process medium. Start-stop fluctuations of the pump directly compromise the stability of flushing circulation.

Ⅳ. Maintenance Guidelines: Detail Control to Extend Service Life of Seal and Flushing System

Although PLAN 11 is easy to maintain, daily detail management is essential. To ensure long-term stable operation and prevent common faults such as leakage and overheating, daily maintenance shall comply with the following requirements:

1.Pipeline and orifice plate inspection: Regularly check that flushing pipelines are unobstructed and leak-free. Verify that the orifice plate matches operating conditions, with no scaling, blockage or bore enlargement, to maintain moderate flushing flow. Insufficient flow causes heat accumulation, while excessive flow leads to seal erosion.

2.Medium condition control: Strictly adhere to the requirement of clean medium application. Never use the scheme for media with impurities or scaling tendency. Control operating temperature strictly; upgrade to PLAN 21 cooled flushing scheme for over-temperature conditions.

3.Seal chamber patrol inspection: Monitor seal chamber temperature, leakage and abnormal noise on a daily basis. Timely vent trapped gas inside the chamber to avoid cavitation and dry friction damage to seal faces.

4.Standard start-stop operation: Ensure pipeline pre-opening before pump startup. Flushing circulation is automatically established once pressure differential builds up between pump inlet and outlet. After shutdown, medium refluxes naturally with no extra shutdown procedures required, avoiding prolonged enclosed heat accumulation.

5.Periodic inspection of vulnerable parts: Focus on wear conditions of throat bushings and rotating/stationary seal faces. Promptly replace aged and leaking pipeline gaskets to eliminate cascading faults caused by minor leakage.

As a fundamental self-flushing arrangement, PLAN 11 is the preferred choice for general conditions due to its high cost performance. Its core value lies in satisfying basic seal protection requirements with a simple configuration, yet it is restricted by medium properties, temperature, pressure and other parameters.

Mastery of its key characteristics facilitates reasonable selection and scientific maintenance. In practical applications, the scheme shall be selected rationally according to medium properties, operating conditions and seal types. When beyond applicable limits, a suitable alternative flushing arrangement shall be adopted in a timely manner to prevent equipment failure and potential safety hazards.
