With the rapid iteration and advancement of the new‑energy lithium‑battery industry, lithium‑iron‑phosphate (LFP) has become a core cathode material for power batteries and energy‑storage batteries thanks to its high safety performance, long cycle life and prominent cost advantages. In key production processes such as LFP mortar transfer, reactor feeding and material circulation, the mortar medium with high solid content, heavy abrasiveness and high crystallization tendency imposes stringent requirements on the tightness, stability and wear resistance of transfer pumps. To address industry‑specific operating pain points, Teflow has launched a new dedicated mortar pump fitted with the proven and reliable 53A mechanical seal flush plan. It solves industry‑wide transfer challenges from three dimensions: seal protection, stable operation and long‑term durability. Custom‑manufactured in batches and precisely delivered, the pump safeguards stable production lines for major LFP manufacturers.

During LFP production, mortars contain massive ultrafine powder particles featuring heavy abrasion, easy deposition and high crystallization risk. Conventional transfer pumps frequently suffer mechanical‑seal wear, medium leakage, material accumulation and jamming inside seal chambers, as well as frequent start‑stop failures under long‑term operation. These issues not only cause material waste and workshop contamination, but also trigger unplanned production shutdowns for maintenance, greatly raising enterprise operation‑and‑maintenance (O&M) costs and cutting production capacity. This constitutes a critical bottleneck restricting efficient production for lithium‑battery chemical enterprises. Traditional seal‑flush plans struggle to cope with such complex working conditions. Seal faces are prone to particle erosion and wear, making long‑term leak‑free operation unachievable. Short service life and frequent maintenance fail to meet the continuous, automated and large‑scale production demands of the lithium‑battery sector.

Targeted at unique operating pain points of the LFP industry, Teflow’s new mortar pump features deeply optimized core sealing system, which comes standard with the high‑standard API 682 53A mechanical seal flush plan. Leveraging mature pressurized barrier‑seal technology, it fundamentally eliminates problems including mortar leakage, seal wear and crystallization blockage. This plan adopts a nitrogen‑pressurized external reservoir. Stabilized by inert‑gas pressure, the barrier‑liquid pressure inside the reservoir remains consistently 0.14‑0.17 MPa higher than the process‑medium pressure in the pump seal chamber, building a positive‑pressure sealing barrier. It prevents LFP mortar from entering the seal chamber and contacting seal end faces at the source, effectively avoiding particle‑induced wear and crystallization jamming.

Meanwhile, relying on pump‑effect ring circulation and thermosiphon principles, the equipment realizes automatic circulating heat exchange of barrier liquid. Equipped with built‑in cooling coils inside the reservoir, it rapidly dissipates heat generated during seal operation, accurately controlling working temperature of the seal chamber. This prevents seal‑element aging, medium vaporization and crystallization caused by high temperature. The complete sealing system is fitted with dual alarm devices for pressure and liquid level, enabling real‑time operating‑condition monitoring. It facilitates routine on‑site inspection and early fault prediction, substantially improving operational safety and controllability. Compared with ordinary flush plans, Plan 53A features simplified piping, stable performance and easy maintenance without complicated O&M procedures, perfectly suiting continuous LFP‑mortar transfer conditions.

Beyond core sealing‑system upgrades, Teflow’s new mortar pump has undergone comprehensive optimization tailored for lithium‑battery chemical scenarios. Its wetted parts are made of high‑wear‑resistant fluoroplastic manufactured via precision moulding and fine polishing. Greatly enhanced erosion resistance, wear resistance and corrosion resistance enable long‑term service against intensive scouring from high‑solid‑content LFP mortars. The compact whole unit runs smoothly, with flow rate and head matching multi‑condition transfer requirements of lithium‑battery production lines, well adapting to multiple working procedures including mortar conveyance, material circulation and batching transfer. In addition, the equipment strictly complies with chemical explosion‑proof and eco‑friendly production standards with zero process‑medium leakage. It maintains a tidy workshop environment and satisfies rigorous specifications for safe and green production within the lithium‑battery industry.

As a professional chemical‑pump manufacturer, Teflow consistently focuses on working‑condition demands of segmented industries. Upholding the production‑delivery philosophy of “working‑condition customization, technology‑driven empowerment and quality priority”, it avoids blind adoption of general‑purpose equipment and keeps deepening product‑technology upgrading for segmented sectors such as LFP, new lithium‑battery materials and fine chemicals. All newly‑delivered mortar pumps in this batch go through multiple quality‑control procedures: strict raw‑material inspection, precision machining, rigorous working‑condition simulation testing and complete‑unit pressure testing. Every delivered unit delivers stable performance, long service life and low O&M costs. It helps enterprises effectively cut equipment failure rates, reduce shutdown losses, lower later‑stage maintenance expenditure and comprehensively boost automation and efficiency of production lines.

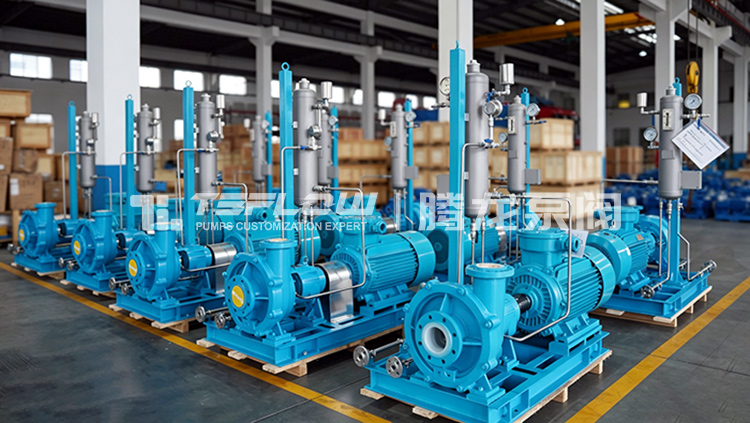

The successful delivery of the new mortar pump with Plan 53A sealing system marks an important milestone for Teflow’s in‑depth engagement in the lithium‑battery chemical sector and precise matching of industry‑specific operating conditions. Going forward, Teflow will keep aligning with development trends of the new‑energy chemical industry, focus on core technological innovation for fluid transfer, continuously optimize product performance and upgrade customized solutions. By supplying higher‑quality, better‑adapted and smarter chemical pumps, Teflow will facilitate quality improvement, efficiency enhancement and green development for LFP and upstream‑downstream new‑energy industries, and provide solid fluid‑transfer‑equipment support for large‑scale, high‑quality growth of the lithium‑battery industry.
